Correct Order

#1 PostAuthor: wheelysteve » Sun Nov 30, 2014 6:34 pm

Can someone tell me the correct order for the bits in the photo, cos I know I'll get it wrong !!

There are 2 rings: a thin one with small raised edge, and a larger one with the same diameter and longer raised edge. Also inc is a rubber ring "buffer".

Cheers lads….

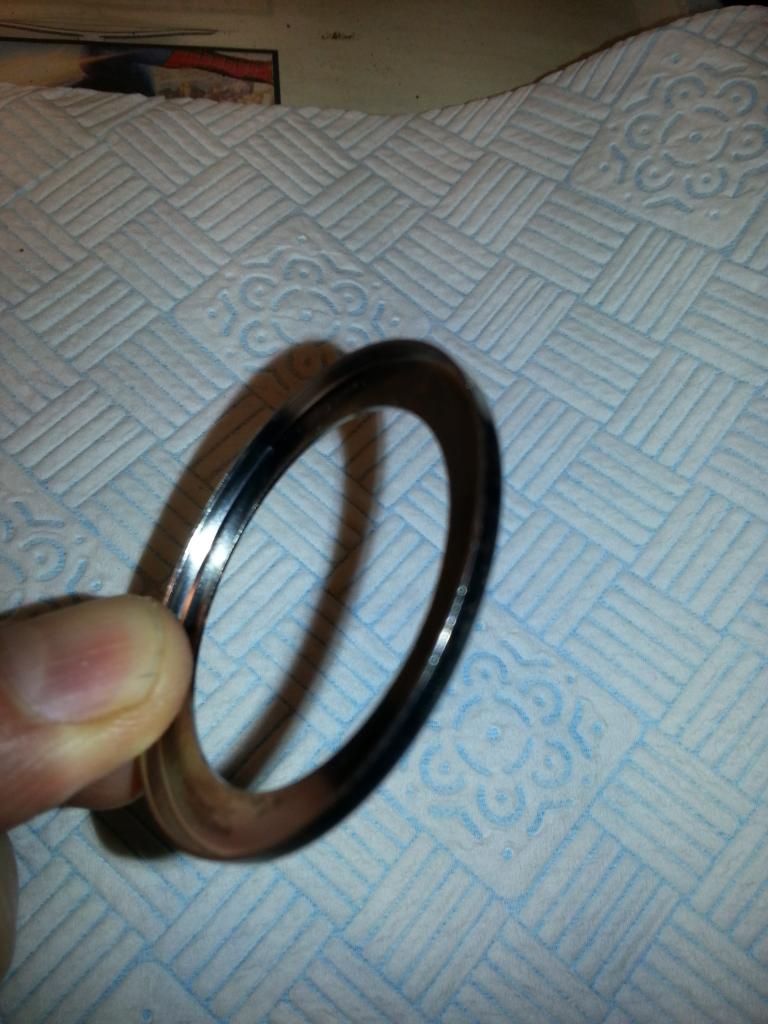

Thin ring



Thick ring
1975 Z1B Candy Red
1975 Z1B Candy Blue
1975 Dogs Z1B
1977 Z650B1
1978 Z650B2
H***a Blackbird

PUM 710
Top
User avatar
Hinckley
100Club
100Club
Posts: 263
Joined: 21st Jun 2012
Location: UK

#2 PostAuthor: Hinckley » Sun Nov 30, 2014 7:02 pm

First fit rubber damper Middle right
Next is Top right (covers the rubber)
Lower cover next -not in pic
Headlamp holder On the left next
Next is Bottom right (covers the top of the headlamp holder)

Do I win a prize?
Top
User avatar
wheelysteve
100Club
100Club
Posts: 450
Joined: 10th Mar 2014
Location: Wokingham, Berks

#3 PostAuthor: wheelysteve » Sun Nov 30, 2014 7:35 pm

That's the order I thought was right. Bloody tight fit though.

Thanks for that……there will be a little bit extra from Santa this year :wink:
