JMC adjustment

#1 PostAuthor: Hobbo » Sat Feb 22, 2014 1:02 pm

Guyzx

you boyz with jmc swing arms how do you adgust cams for chain alignment cant see any notches ??

Phil
Never Dull in Hull Watch no 31

User avatar
Ginger Bear
Hardcore
Hardcore
Posts: 6850
Joined: 16th Dec 2008
Location: In the Dark.
Contact:

#2 PostAuthor: Ginger Bear » Sat Feb 22, 2014 1:15 pm

:pop ......................................................

















............................... :boom :boom :boom :boom :boom

# 104

Phil Churchett Award Winner 2011 & 2016 :D
Buzzworkz Best Modified Zed 2016

Hobbo
Hardcore
Hardcore
Posts: 2697
Joined: 18th Mar 2006
Location: Hull

yo

#3 PostAuthor: Hobbo » Sat Feb 22, 2014 1:23 pm

Mark

Give up ya t**t
Never Dull in Hull Watch no 31

User avatar
Taffus
Moderator
Posts: 4159
Joined: 30th Aug 2007
Location: .21 club

#4 PostAuthor: Taffus » Sat Feb 22, 2014 1:35 pm

ok, given up...... joke is old now
(\__/)
(='.'=)
(")_(")Image

User avatar
Ginger Bear
Hardcore
Hardcore
Posts: 6850
Joined: 16th Dec 2008
Location: In the Dark.
Contact:

#5 PostAuthor: Ginger Bear » Tue Mar 25, 2014 6:41 pm

Phil,

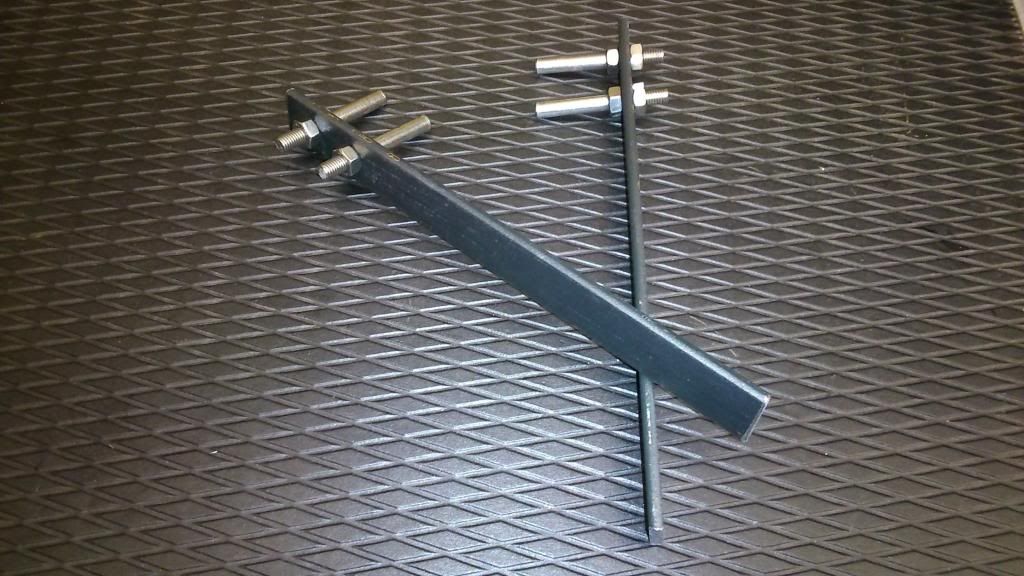

I've just knocked these up;


M8 bolts with the heads cut off & a bit of steel flat bar, left over from Coldsummers tennis court repairs. :sou



# 104



Phil Churchett Award Winner 2011 & 2016 :D

Buzzworkz Best Modified Zed 2016

paulmceleney
Chunks
Posts: 591
Joined: 29th Jan 2008
Location: milton keynes

#6 PostAuthor: paulmceleney » Tue Mar 25, 2014 8:06 pm

There is no notches to see, you need a tool like Steve made I had one made for me when you turn the cams you can measure from the top of the swingarm to the top of the bar both sides, both need to be in the same position, the tool I have fits snug into the cams

User avatar
ADRIAN H
Hardcore
Hardcore
Posts: 4174
Joined: 21st Mar 2009
Location: The Brunswick, Charminster. Bmth

#7 PostAuthor: ADRIAN H » Tue Mar 25, 2014 8:49 pm

Ginger Bear wrote:Phil,

I've just knocked these up;


M8 bolts with the heads cut off & a bit of steel flat bar, left over from Coldsummers tennis court repairs. :sou


I have a pair very similar to those. Mine are made from M8 Rawl bolts, through some M10 Ali bar.
👀 👀 👀
email - adrianhorsfield@live.co.uk

User avatar
rpeters
Bristol's "H" Hoarder
Posts: 660
Joined: 11th Jun 2011
Location: Bristol

#8 PostAuthor: rpeters » Tue Mar 25, 2014 9:04 pm

Yep Ging, I have a pair exactly the same.....they work a treat :lol: :lol:
paid up member

jphaynes669
Hardcore
Hardcore
Posts: 1435
Joined: 24th Jun 2012
Location: Northants

#9 PostAuthor: jphaynes669 » Tue Mar 25, 2014 9:06 pm

I have made a similar tool as shown, but then I use a protractor and set both sides at the same angle until the correct tension is set. Its a bit of a fiddle but spot on alignment is guaranteed. :D
Jeff.H

njwmct
100Club
100Club
Posts: 483
Joined: 15th Jun 2011
Location: Daventry, Northants
Contact:

#10 PostAuthor: njwmct » Wed Mar 26, 2014 6:25 pm

Even if you measure the position of each eccentric in relation to the swingarm very carefully it doesn't mean that the bikes wheel alignment (front wheel to rear wheel) is correct.

Even on a modern bike you can adjust your chain & line up the adjuster marks equally & the wheel alignment is highly likely to be out.

The only way to get accurate wheel alignment is with a laser set up.

http://www.njwmotorcycletyres.co.uk/accu-track.htm
