Harris Magnum 2 rear sub-frame

#1 PostAuthor: martinz1000r » Tue Aug 27, 2013 4:30 pm

Can anyone that has an un-molested Harris post up a few pictures of what the rear subframe and fittings should look like?

I just tried to fit the standard bodywork to mine and it dont fit. I suspect that some form of surgery has taken place to accommodate the ghastly race seat it currently sports.
Z1000R, Moto Martin, z900 A4 Crosby Replica, Harris Magnum 2, Suzuki GSXR 1100 Slabbie, Yamaha YZF750SP, SP1 Hoonda, Katana 1100, Bimota SB6R
Top
Padders
Hardcore
Hardcore
Posts: 4875
Joined: 15th Jan 2006
Location: Grimsby Lincolnshire

#2 PostAuthor: Padders » Tue Aug 27, 2013 5:13 pm

Here are a few of my standard harris mag 2 hope they help.





PUM 13
Top
martinz1000r
Custard Cream
Custard Cream
Posts: 955
Joined: 1st Jul 2007
Location: Oxfordshire

#3 PostAuthor: martinz1000r » Tue Aug 27, 2013 5:23 pm

perfect! Yes mine has been bent upwards and some new brackets welded on to give a mounting for a battery box and the new seat. Out with the angle grinder I guess!

Where does the battery go btw?
Z1000R, Moto Martin, z900 A4 Crosby Replica, Harris Magnum 2, Suzuki GSXR 1100 Slabbie, Yamaha YZF750SP, SP1 Hoonda, Katana 1100, Bimota SB6R
Top
Padders
Hardcore
Hardcore
Posts: 4875
Joined: 15th Jan 2006
Location: Grimsby Lincolnshire

#4 PostAuthor: Padders » Tue Aug 27, 2013 5:30 pm

The battery sits in the rear of the seat unit will see if I have a picture if not will take one later tonight.

Remember to post some pictures of your bike.
PUM 13
Top
martinz1000r
Custard Cream
Custard Cream
Posts: 955
Joined: 1st Jul 2007
Location: Oxfordshire

#5 PostAuthor: martinz1000r » Tue Aug 27, 2013 5:37 pm

Padders wrote:The battery sits in the rear of the seat unit will see if I have a picture if not will take one later tonight.

Remember to post some pictures of your bike.


It's a Suzuki! I'll be barred from the forum for being disloyal...... :oops:
Z1000R, Moto Martin, z900 A4 Crosby Replica, Harris Magnum 2, Suzuki GSXR 1100 Slabbie, Yamaha YZF750SP, SP1 Hoonda, Katana 1100, Bimota SB6R
Top
Padders
Hardcore
Hardcore
Posts: 4875
Joined: 15th Jan 2006
Location: Grimsby Lincolnshire

#6 PostAuthor: Padders » Tue Aug 27, 2013 5:43 pm

Nah we need people on the site that have varied tastes so no worries be boring if the only bikes we liked were just zeds
PUM 13
Top
martinz1000r
Custard Cream
Custard Cream
Posts: 955
Joined: 1st Jul 2007
Location: Oxfordshire

#7 PostAuthor: martinz1000r » Tue Aug 27, 2013 7:20 pm


Magnum and 1100 Slabbie with my GPz....
Z1000R, Moto Martin, z900 A4 Crosby Replica, Harris Magnum 2, Suzuki GSXR 1100 Slabbie, Yamaha YZF750SP, SP1 Hoonda, Katana 1100, Bimota SB6R
Top
Padders
Hardcore
Hardcore
Posts: 4875
Joined: 15th Jan 2006
Location: Grimsby Lincolnshire

#8 PostAuthor: Padders » Tue Aug 27, 2013 8:49 pm

Nice trio you have there Martin are you sure your frame is not a mag 1. Just asking as that was angled up higher at the back.

Here are a couple taken of the rear battery compartment. One with the cover on and one off. Let me know if you need any further information.


PUM 13
Top
User avatar
KWACKERZ1
Hardcore
Hardcore
Posts: 1729
Joined: 1st Sep 2007
Location: Leicestershire

#9 PostAuthor: KWACKERZ1 » Tue Aug 27, 2013 9:18 pm

Martin's looks like its got a mag2 tank and without looking closely at the headstock its difficult to tell Mag1 or 2.

There are some pictures of Mag one frames bare in a couple of my project threads, but Martin if you need some I could get some for you.
Top
User avatar
Jay1969
Hardcore
Hardcore
Posts: 4260
Joined: 26th Feb 2013
Location: East Midlands, England.
Contact:
Contact Jay1969

#10 PostAuthor: Jay1969 » Tue Aug 27, 2013 9:50 pm

Hiya, what is the rear suspension like with the
shock absorber positioned like that, compared to the ride on a
'conventional' ride?
Top
HowieD
100Club
100Club
Posts: 336
Joined: 5th Feb 2008
Location: Lincoln

#11 PostAuthor: HowieD » Wed Aug 28, 2013 8:42 am

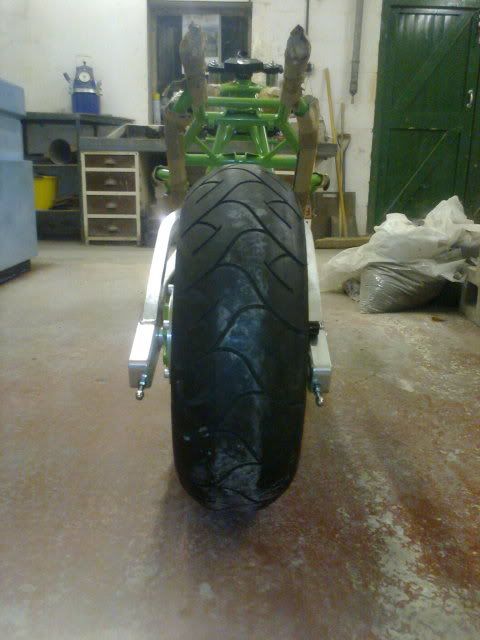

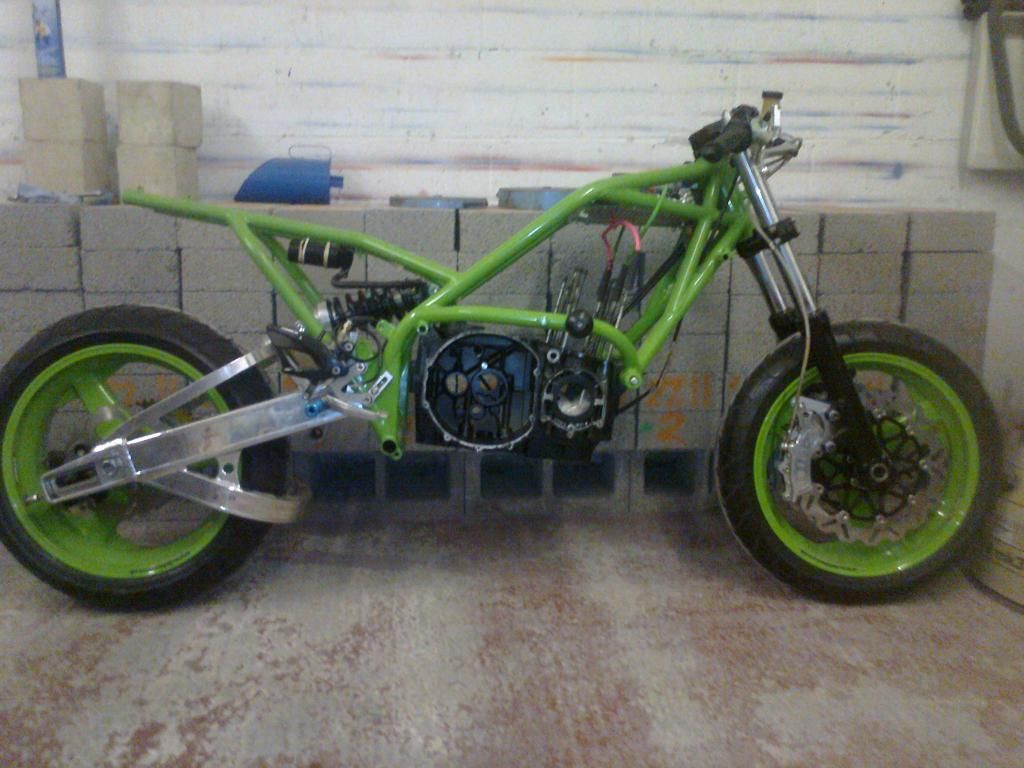

Mine arrived from Harris like this; two threaded Bungs in the end of the Tubes, no other bracktes welded on:


Harris supplied this battery box too but I had to butcher it to fit:


hope this helps

Regards
H
CD185, Maggot, Z1-R, Horace
Top
User avatar
PETER KZ1A
100Club
100Club
Posts: 159
Joined: 26th May 2009
Location: PERTH WESTERN AUSTRALIA

#12 PostAuthor: PETER KZ1A » Sun Sep 22, 2013 1:08 pm

GSX11 magnum wooo what a beaut
Top
User avatar
PETER KZ1A
100Club
100Club
Posts: 159
Joined: 26th May 2009
Location: PERTH WESTERN AUSTRALIA

#13 PostAuthor: PETER KZ1A » Sun Sep 22, 2013 1:11 pm

I had a GPZ 11 mag 2 flogged it when we moved faaaaak
Top
User avatar
Pigford
Hardcore
Hardcore
Posts: 13314
Joined: 2nd Jan 2006
Location: North Dorset

#14 PostAuthor: Pigford » Mon Sep 23, 2013 6:08 pm

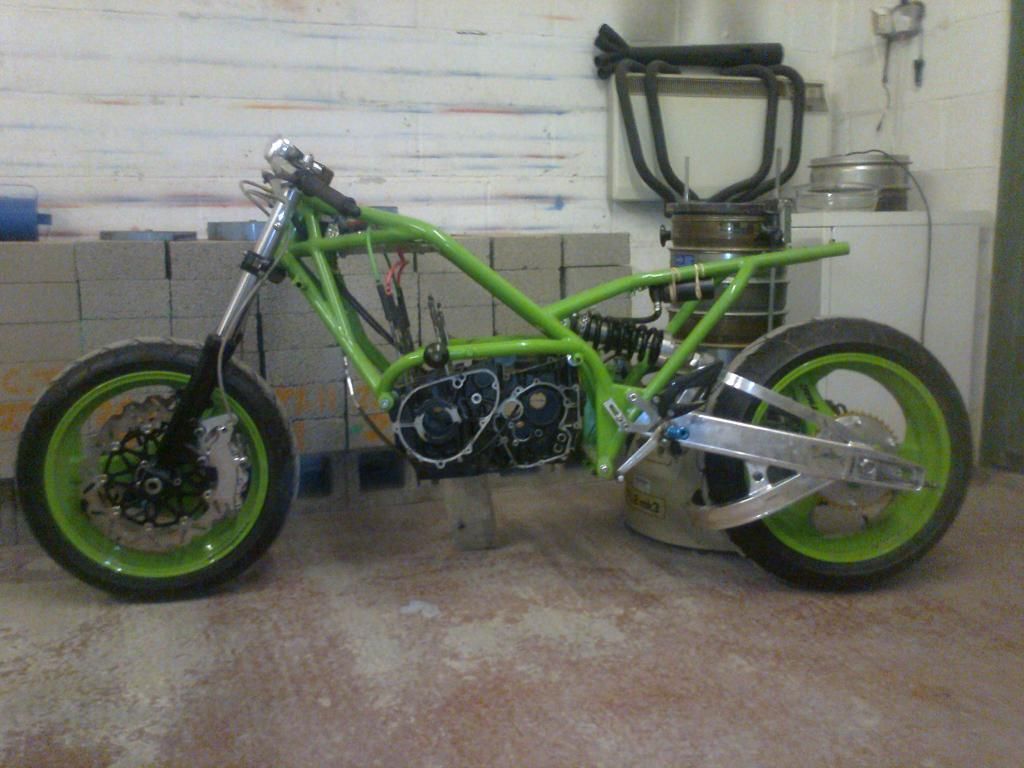

Heres a shot of me Mk.I if any help




And on the 7th day... Zeds were created!
Top
