Camshaft end float

#1 PostAuthor: z1000puddin » Tue Nov 20, 2012 11:02 pm

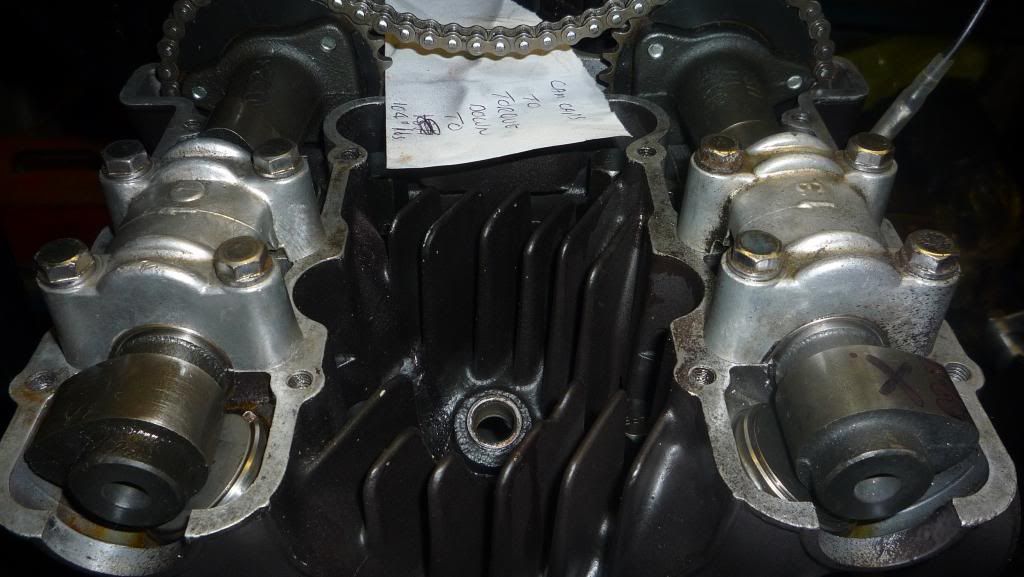

I have just fitted my camshafts & was wondering if there is any specific side float.
Mine seemed quite tight, compared to my other zed thou, where there was a very slight float (before torquing the caps down.

They are after market Andrews cams 2x

Stu
Zed til Dead
Top
User avatar
zed1015
Hardcore
Hardcore
Posts: 2319
Joined: 2nd Nov 2005
Location: Somewhere between Scunny and Goole.

#2 PostAuthor: zed1015 » Tue Nov 20, 2012 11:23 pm

It will be fine.
End float is governed by the cam locating in the one of the cam caps.
The raised ring on the camshaft locates in one of the cam caps and it's only function is to prevent the cam sliding over too far so the cam bolts etc don't eat in to the head.
Top
User avatar
z1000puddin
Custard Cream
Custard Cream
Posts: 918
Joined: 23rd Jul 2011
Location: Aberdeen,Dyce

#3 PostAuthor: z1000puddin » Tue Nov 20, 2012 11:30 pm

Thanks Rob.
I was worrying over nothing then. :D

Thks

Stu
Zed til Dead
Top
User avatar
PAULJAC47
Hardcore
Hardcore
Posts: 3266
Joined: 31st Aug 2008
Location: WOLVO WEST MIDS ENGLAND

#4 PostAuthor: PAULJAC47 » Wed Nov 21, 2012 5:56 pm

Hi what is the torque setting you have written on the paper? only ask as there is a typo in the Haynes book of lies with incorrect torque,i just nip em up with a spanner as they are very prone to strip...Cheers Paul J
